Green Strap Recycled Making Machine PET Packing Belt Strap Production Line With PLC Control System And Strong Tension

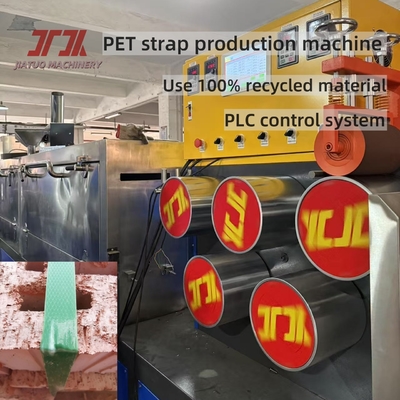

Product description of PET belt making machine
This PET packaging extruder can use 100% waste strap, bottle flakes, and tackifiers to produce packaging for manual and fully automated strapping machines, and has been highly recognized and appreciated by customers for its excellent performance and cost-saving capabilities.
Parameter of PP PET strap making machine
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
| Production material |
PET recycled material/Bottle flake material |
PET recycled material/Bottle flake material |
PET recycled material/Bottle flake material |
PET recycled material/Bottle flake material |
| Number of strips produced |
2 |
3 |
4 |
6 |
| Output bandwidth (mm) |
9-32mm |
9-32mm |
9-32mm |
9-32mm |
| Tape thickness (mm) |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
0.4-1.2 |
| Extrusion volume (kg/h) |
220-250kg/H |
300-330kg/H |
450-500kg/H |
600-625kg/H |
| Maximum linear speed(m/min) |
≥260 |
≥260 |
≥260 |
≥260 |
| PLC control system |
PLC |
PLC |
PLC |
PLC |
| Screw model |
90 |
100 |
125 |
150 |
Feature of PET strap making machine
1.PET strap has emerged as the leading eco-friendly strapping solution in the international market, effectively replacing traditional steel and PP straps.
2.Combining the strength of steel straps with superior durability, PET straps overcome the limitations of conventional packaging materials—such as low tensile strength and brittleness—making them ideal for securing timber, steel, and other heavy-duty applications.
3.Our production line features fully automated PLC-controlled operation, enhanced by precision melt pumps and pressure sensors to ensure consistent output and premium strap quality.
4.The process supports sustainable manufacturing by accommodating 100% recycled PET flakes (from waste bottles), virgin material, or any combination of both.

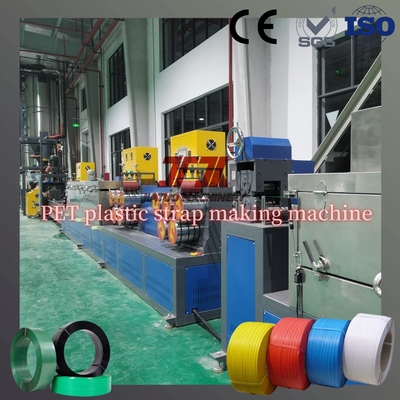

Machine parameter of PET 3 belts extrusion line
| Serial number |
Product name |
Quantity (as configuration to adjustment) |
| 1 |
Screw feeder |
3sets |
| 2 |
Horizontal mixer(2500L) |
1set |
| 3 |
Horizontal mixer(3000L) |
1set |
| 4 |
Pre-drying tower(3000L) |
1set |
| 5 |
Dehumidification and drying system |
1set |
| 6 |
Oil and dust filter |
1set |
| 7 |
Extruder part |
1 set |
| 8 |
Reducer model: 225 type |
1 set |
| 9 |
Screw: ¢ 100mm |
1 set |
| 10 |
Main engine motor |
1 set |
| 11 |
100CC Melt pump |
1set |
| 12 |
Single cylinder filter |
1 set |
| 13 |
Extrusion die head |
1 set |
| 14 |
Cooling water tank |
1 set |
| 15 |
Stretching oven |
1 set |
| 16 |
Forming oven part |
1set |
| 17 |
PLC control system |
1 set |
| 18 |
Double station winding machine |
2 sets |
Application of PET strapping
1. Packaging & Logistics
Palletizing: PET strapping is commonly used to secure goods on pallets for transportation, preventing movement during transit.
Bundling: Used to bundle boxes, cartons, and other lightweight to medium-weight products.
Brick & Construction Materials: PET straps are used to bundle bricks, tiles, and other construction materials.
2. Manufacturing & Industrial Use
Paper & Printing Industry: Secures reams of paper, newspapers, and magazines.
Metal & Pipe Strapping: Used to bundle metal sheets, pipes, and rods due to its high tensile strength.
Automotive Industry: Helps bundle automotive parts and components for shipping.
3. Agriculture & Food Industry
Hay & Crop Baling: PET strapping is used to bale hay, straw, and other agricultural products.
Food Packaging: Safe for securing food products as it is non-toxic and resistant to moisture.
About us:
SHENZHEN JIATUO PLASTIC MACHINERY CO.,LTD has nearly 30 years of experience in the packaging belt equipment manufacturing industry in China, with a professional R & D team, sales team, production plant. Our processing equipment imported from Germany, technical stuff often go abroad for further study. The company has more than 50 patents. In China's packaging industry, our company has a good reputation, advanced technology, high-end products, has always been in the first place, we can provide customers with better quality equipment, production of higher-end products. Our annual export volume reaches 40-45% to Vietnam, Thailand, Turkey, Philippines, Pakistan, etc. In order to better understand the consumer's demand for our products and to improve and innovate to provide more competitive machines, we have set up our own PP PET strapping factories, Dongguan Jiasuo and Guigang Jiatuo. Welcome to contact us to visit our factory.
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 30-40days, however, based on order.
4. Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
5. what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 50% deposit , then 50% balance is paid before shipment , we usually offer EXW SHENZHEN price. but we alsoaccept other way like L/C , wetern union ,and do CFR&CIF etc.
